300/1200Mbps Outdoor Wireless AP
Note:The differences between the two options are as follows :
Description:
CFEW72V2 High Power WiFi AP/Repeater is mainly used for providing free WiFi service in big area such as factory, community, street or etc. The AP/Repeater can take an existing 2.4GHz or 5GHz wireless signal, repeat and extend it to a longer range where it is too far away for the router or access point to reach. The AP/Repeater simultaneously supports 2.4G and 5G wireless network connection,and it can supports 2.4G and 5G transmission speeds of up to 1200Mbps. equipped with 128MB large memory, IP66 outdoor protection level, high gain The omnidirectional antenna supports 360° omnidirectional coverage and fully meets the longdistance wireless coverage requirements of outdoor squares, stadiums, scenic spots, parks, playgrounds and other environments.When APs are deployed densely, they will interfere with each other due to high power, affecting signal quality. This AP supports power adjustment, supports 0%, 12.5%, 25%, 50%, 75%, 100% multiple gears, users can adjust the power according to the actual situation to ensure the optimal signal quality; It is a high-performance outdoor omnidirectional coverage AP product.
Specification:
1.Brand Name: comfast
2.Model Number: CF-EW72 V2
3.Chipset:MT7621DAT+MT7613BEN+MT7603EChipset ,RAM : 128MB ; Flash : 16MB ; PA Chip SE2576L*2；
4.RF Parameters:200mW (23dBm) Transmitting Power
5.Antenna:2*5dBi External antenna ；
6.Wi-Fi Transmission Rate: 2.4Ghz : 300Mbps 5.8Ghz : 867Mbps
7.Maximum receiving sensitivity ：-96dBm
8.Working frequency : 802.11b/g/n : 2.412GHz-2.484GHz ; 802.11ac/n/a : 5.180GHz-5.825GHz
9.Physical interface : 1*10/100 /1000 LAN RJ45 Ethernet port (Support POE power supply) , 1*10/100/1000 WAN RJ45 Ethernet port (Support POE power supply) , 1*RESET Button ;
10.Indicator light ：Power / WAN / LAN / WiFi indicators ；
11.Power supply ：POE power supply ,support 802.3af / 802.3at standard (Up to 100 meters）；Power adapter supply : 48V 0.32A POE power adapter ;
12.Power Consumption:<8W
13.Lightning protection; IP66 Level
MTBF:>250000H
14.Installation method :Pole installation, wall installation；
15.Product Size: 353*85*44mm
16.Working Environment:
Working Temperature: -40’C~55″C
Storage Temperature: -40″C~70’C
Working Humidity: 10%~90%RH No-condensing
Storage Humidity: 5%~95%RH No-condensing
17.Application : Application for park / school / Driving school / Plant area / Shopping mall / Village

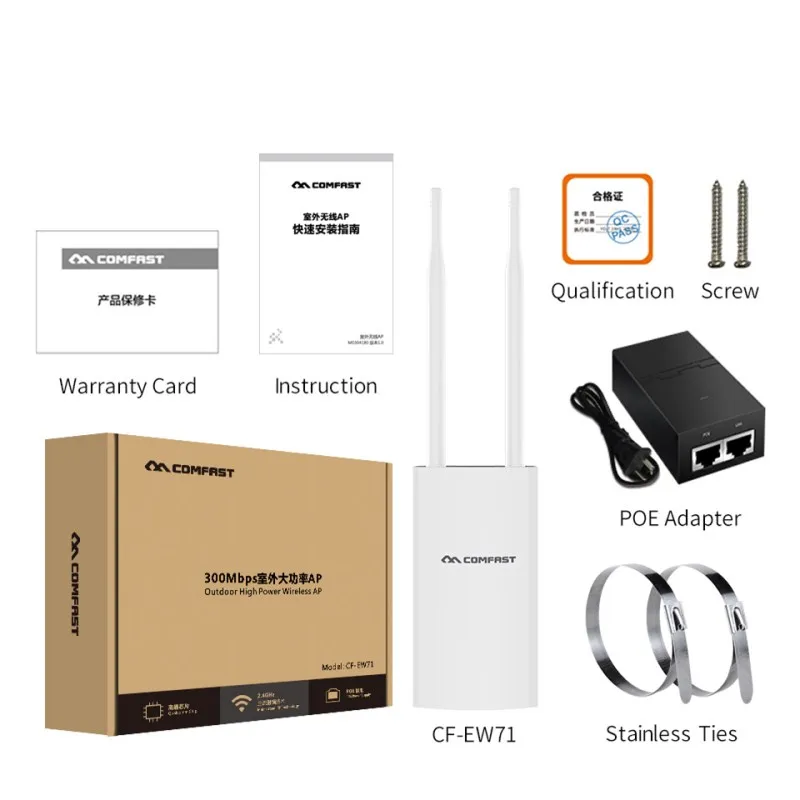

Package Contents:
1* Outdoor Acces Point AP
2* screws
1* POE power supply
1* stainless steel cable tie
1* manual

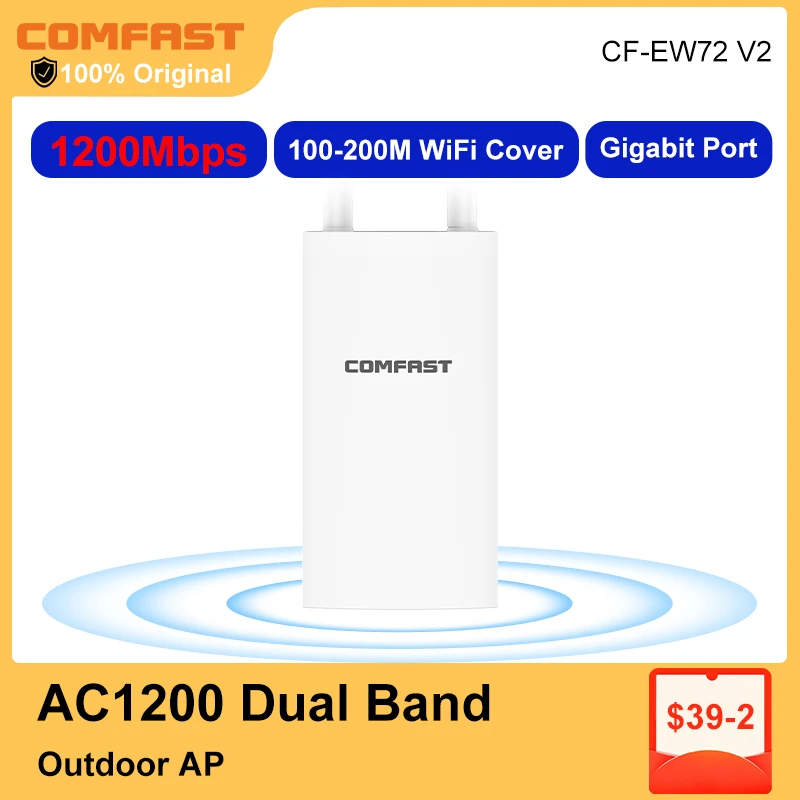

1200Mbps Outdoor Access Point
CF-EW72 V2:AC1200 HIGH POWER

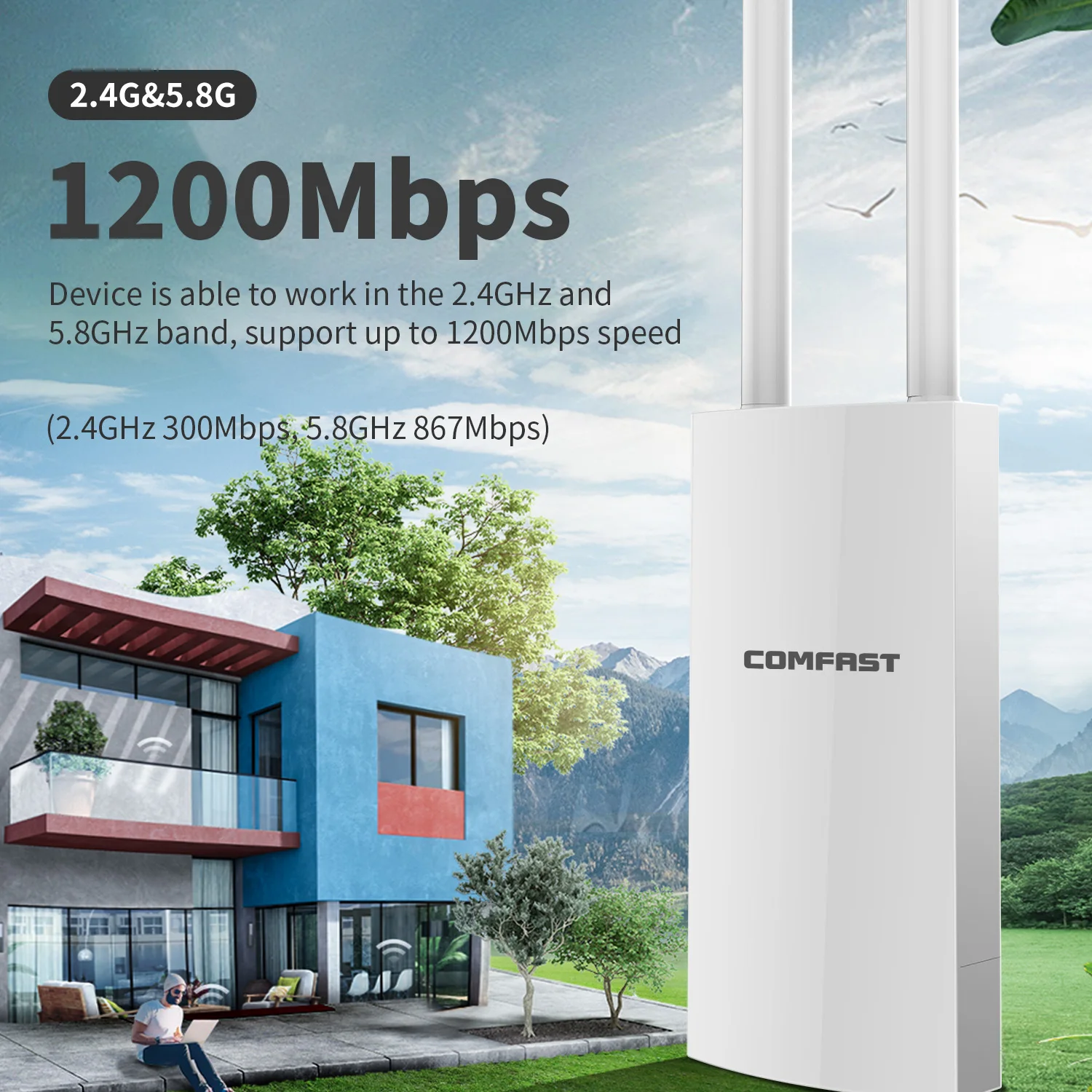

1,1200Mbps
2,Three-chip
3,120+Users
4,High Power PA
5,Gigabit Ethernet port
6,360°Coverage
IP66 Weatherproof
MULTIPLE PROTECTION OUTDOORS

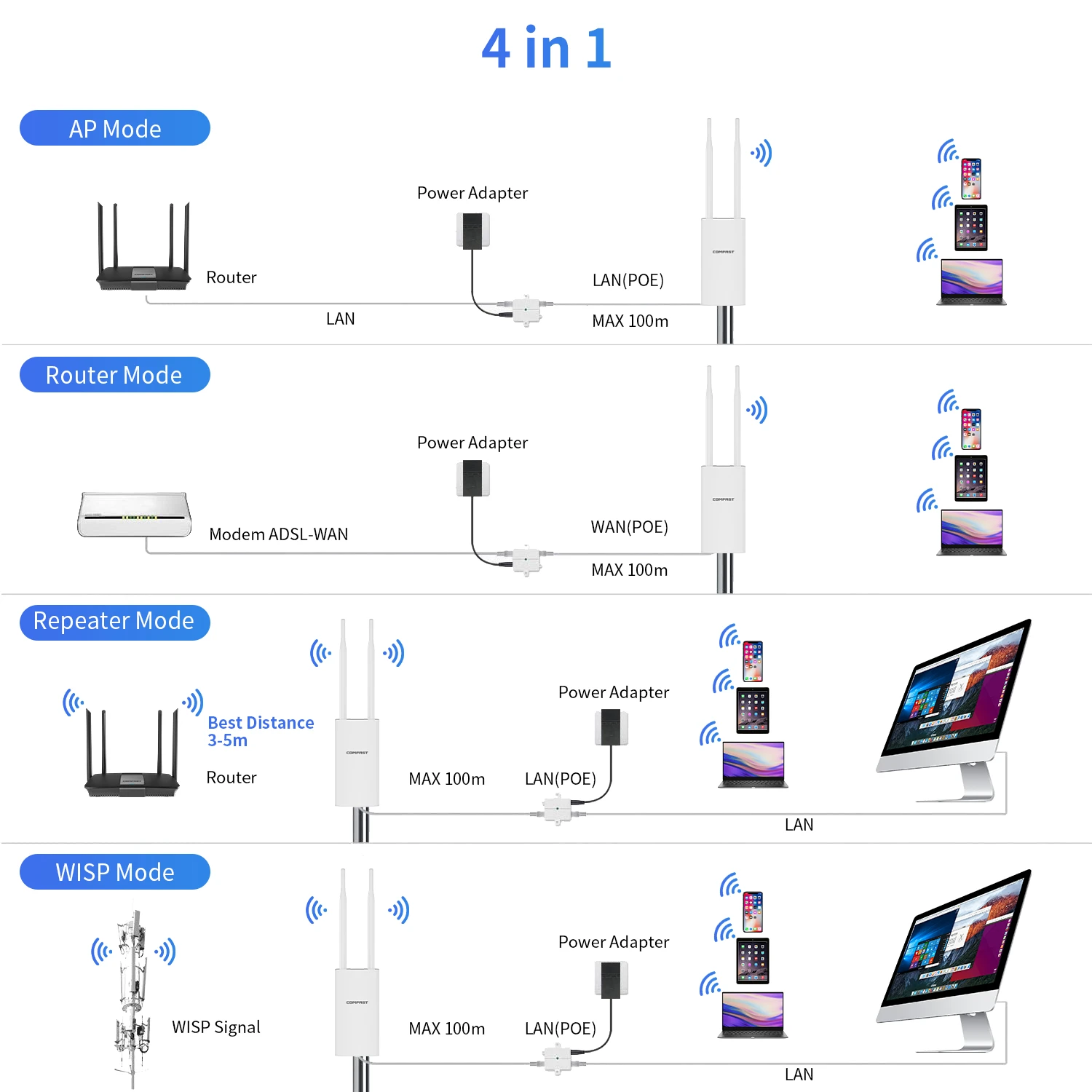

FOUR WORKING MODES
Support AP Mode/Router Mode/Bridge Mode/Repeater Mode,4-in-1 working mode.
Support POE power supply via Ethernet cable
(The cable should connect to the POE port and the WAN port of the device)
DUAL ETHERNET PORTS
802.3af/802.3at Passive PoE (PoE Adapter Included), Coverage up to 3280ft/100m.
300Mbps Outdoor Access Point
Description:
CF-EW71 V2 is a 300Mbps outdoor high power AP with professional outdoor protection design, which is suitable for all kinds of harsh outdoor environments. The 2*5dBi omni-directional waterproof antenna improves the signal transmitting and receiving performance, which is better suited to the outdoor long-distance and wide-range wireless coverage.
Specification:
1.Brand Name: comfast
2.Model Number: CF-EW71 V2
3.Chipset:QCA9533 Chipset ,RAM : 64MB ; Flash : 16MB ; PA ChipSE2576L*2；
4.RF Parameters:500mW (27dBm) Transmitting Power
5.Antenna:2*5dBi External antenna ；
6.Wi-Fi Transmission Rate: 2.4Ghz : 300Mbps ;
7.Maximum receiving sensitivity ：-96dBm
8.Working frequency : 802.11b/g/n : 2.412GHz-2.484GHz ;
9.Physical interface : 1*10/100 LAN RJ45 Ethernet port (Support POE power supply) , 1*10/100 WAN RJ45 Ethernet port (Support POE power supply) , 1*RESET Button ;
10.Indicator light ：Power / WAN / LAN / WiFi indicators ；
11.Power supply ：POE power supply ,support 802.3af / 802.3at standard (Up to 100 meters）；Power adapter supply : 48V 0.32A POE power adapter ;
12.Power Consumption:<8W
13.Lightning protection; IP66 Level
MTBF:>250000H
14.Installation method :Pole installation, wall installation；
15.Product Size: 353*85*44mm
16.Working Environment:
Working Temperature: -40’C~55″C
Storage Temperature: -40″C~70’C
Working Humidity: 10%~90%RH No-condensing
Storage Humidity: 5%~95%RH No-condensing
17.Application : Application for park / school / Driving school / Plant area / Shopping mall / Village
Combat the harsh outdoor environment1,Lightning protection
2,High temperature resistance
3,Dust prevention
4,Antifreezing
5,Waterproof
6,Antioxidant
Powerful ConfigurationHigh configutation wireless solution, powerful Performance.
1,High Power Chip :QCA9531
2,Power Amplifier :2.4G SE2576L*2
3,Storage Memory: 64MB;Flash:16MB
Competent with Complex WiFi Coverage Solution
Q&A
Q1. How far is the wifi launch range?A1. This is 360 degree wifi coverage outdoor AP,in an open, unobstructed place, the cover radius is 50-150M
Q2. This is an WiFi repeater , or router ?
A2. This is outdoor wireless AP as well as WIFI router. This outdoor device has 3 mode, AP / Router/ Bridge
Q3. Whether thunderstorms need to be put indoors ?
A3. This is professinonal outdoor wifi router.IP66 waterproof rating
